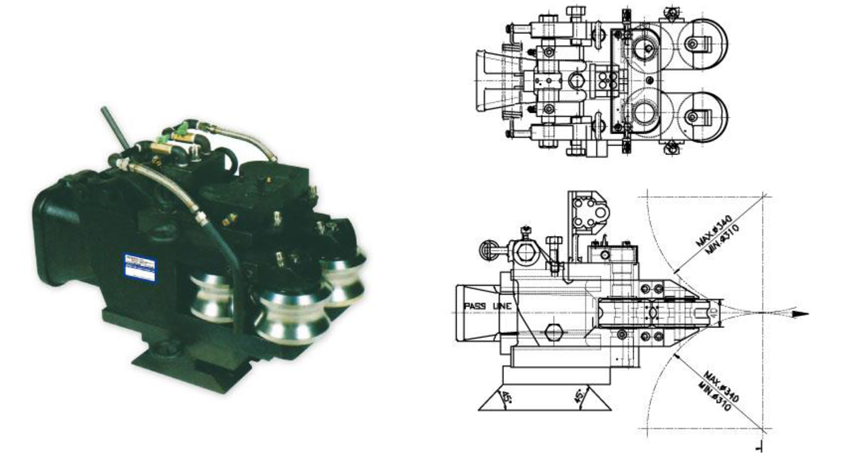

ENTRY GUIDE(TKEDR TYPE)
-
-
TYPE NO. OVER AXB FLAT OVAL ROUND ΦA DIA AXB BOX □A SQUARE □A HEXA. AXBXC RECT. AXB TKEDR 25 12X25 12X22 Φ14 14X25 □10 □8 10X20X16 8X18 TKEDR 40 20X40 18X36 Φ24 22X42 □18 □14 18X36X22 16X30 TKEDR 55 24X50 24X47 Φ28 26X46 □22 □18 20X46X28 20X35 TKEDR 70 32X70 30X50 Φ32 35X65 □28 □22 30X58X30 25X50 TKEDR 90 42X90 40X70 Φ42 46X90 □38 □30 40X70X50 36X70 TKEDR 110 56X105 50X80 Φ58 60X110 □50 □40 50X90X60 45X80 TKEDR 130 68X110 Φ60 65X110 □62 □46 58X100X65 52X90 TKEDR 150 95X130 Φ70 80X140 □70 □60 68X120X80 55X110 ※ Desirable caliber size is 85% of above figure. / The desirable caliber 85% of the above-mentioned size.
TYPE NO. B D E F H R S Φd h e RCD SCD SRD Bearing Weight TKEDR 25 120 165 62 72 85 118 62 56 24 3 58 48-61 44-63 6200-Z 40kg TKEDR 40 140 185 72 110 95 138 74 68 40 4 74 60-78 56-80 30202 52kg TKEDR 55 150 195 96 130 100 148 81 76 55 4 82 67-88 63-90 30203 66kg TKEDR 70 180 206 110 154 105 178 102 94 70 6 100 76-106 72-108 30303 90kg TKEDR 90 218 270 140 208 140 196 106 98 90 5 114 102-120 98-122 32304 150kg TKEDR 110 270 330 150 200 165 228 137 110 110 6 148 126-154 122-156 32305 270kg TKEDR 130 320 360 186 270 180 276 161 130 130 6 168 144-178 144-178 32306 340kg TKEDR 150 350 415 220 290 220 288 184 140 140 8 202 168-214 168-214 32308 460kg ※ X, Y, Z/X, Y and Z are subject to your reques.
-
