BALL JOINT
-
-
BALL JOINT
Based on the know-how and technology challenges towards new dreams. -

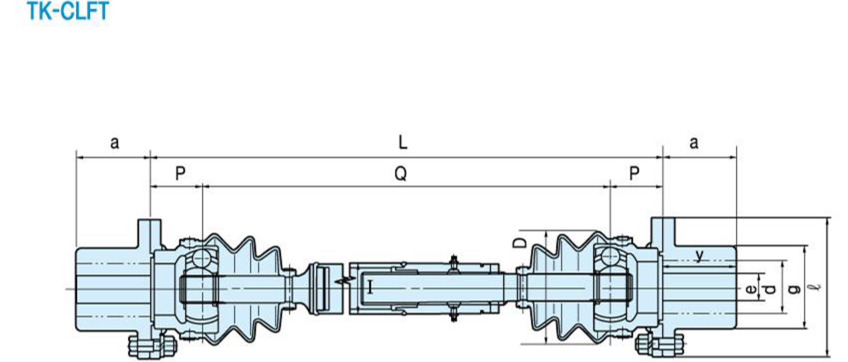

TK-CLFT
-
-
TK-CLFT 표 SIZE Allowable Elasticity Allowable Shaft Angle Mass CLFB , CLFP CLFT When Operating When Stopped CLFB CLFP CLFT Over 15 More than 15
More than 25L=500mm Length
100mmL=500mm Length
100mmL=500mm Length
100mmBJ 75 ±10 +10
-5+80
-625˚ 38˚ 10.0 0.39 13.2 0.49 14.2 0.49 BJ 95 ±10 +10
-5+80
-625˚ 38˚ 14.9 0.56 17.6 0.49 19.3 0.49 BJ 100 ±10 +10
-5+90
-825˚ 38˚ 20.9 0.63 25.6 0.75 27.1 0.75 BJ 125 ±10 ±10 +90
-825˚ 38˚ 33.5 0.99 37.8 0.75 39.4 0.75 BJ 150 ±15 ±15 +120
-1525˚ 38˚ 46.2 1.54 56.2 1.34 61.2 1.34 BJ 175 ±15 ±15 +150
-1525˚ 38˚ 66.0 1.86 80.0 2.26 88.9 2.26 BJ 200 ±15 ±15 +150
-1525˚ 38˚ 98.1 2.60 112 2.26 121 2.26 BJ 225 ±15 ±15 +150
-1525˚ 38˚ 128 3.02 151 3.20 171 3.20 ※ Production range of shaft length has each 5mm intervals from minimum to maximum on above figure.
-
