BALL JOINT
-
-
BALL JOINT
Based on the know-how and technology challenges towards new dreams. -

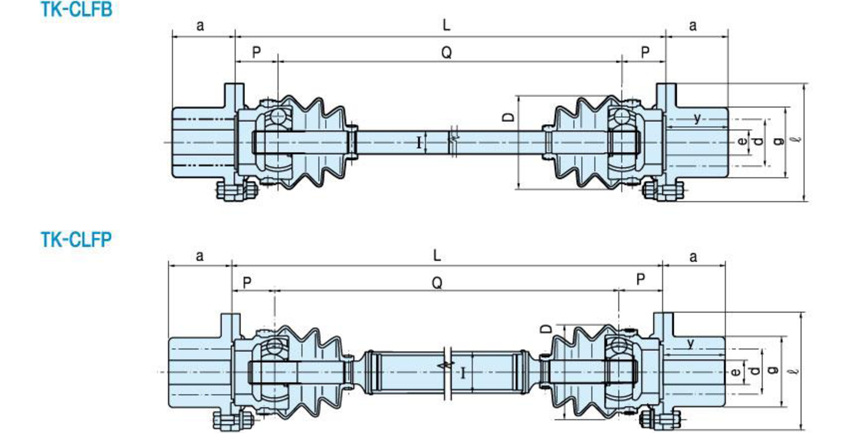

TK-CLFB, TK-CLFP
-
-
TK-CLB, TK-CLP 표 SIZE FLANGE Shaft OD Center Position Length L Length Out Dia. HOLE
e신ShaftMax유형
dOut Dia.
DCLFB CLFP
CLFTP CLFB CLFP CLFT a y g ℓ Min~Max Min~Max Min~Max BJ 75 74.5 74.5 70 118 - 45 81 25 48.6 40 240~540 545~4,000 455~2,000 BJ 95 79.5 79.5 80 136 - 50 108 30 48.6 46 290~545 550~4,000 515~2,000 BJ 100 94.5 94.5 90 154 - 60 112 32 60.5 47 305~545 550~4,200 580~2,000 BJ 125 112 112 110 179 - 70 148 40 60.5 55 375~650 655~4,200 610~2,000 BJ 150 120 120 125 192 40 80 165 50 89.1 76 475~780 785~4,500 830~2,000 BJ 175 135 135 140 215 40 90 172 55 101.6 83 470~880 885~4,500 910~2,000 BJ 200 150 150 160 250 50 100 199 65 101.6 95 540~900 905~4,500 950~2,000 BJ 225 165 165 175 265 50 110 222 70 139.8 105 580~900 905~4,500 1,050~2,000 ※ Production range of shaft length has each 5mm intervals from minimum to maximum on above figure.
-
