UNIVERSAL JOINT
-
-
UNIVERSAL JOINT
Based on the know-how and technology challenges towards new dreams. -

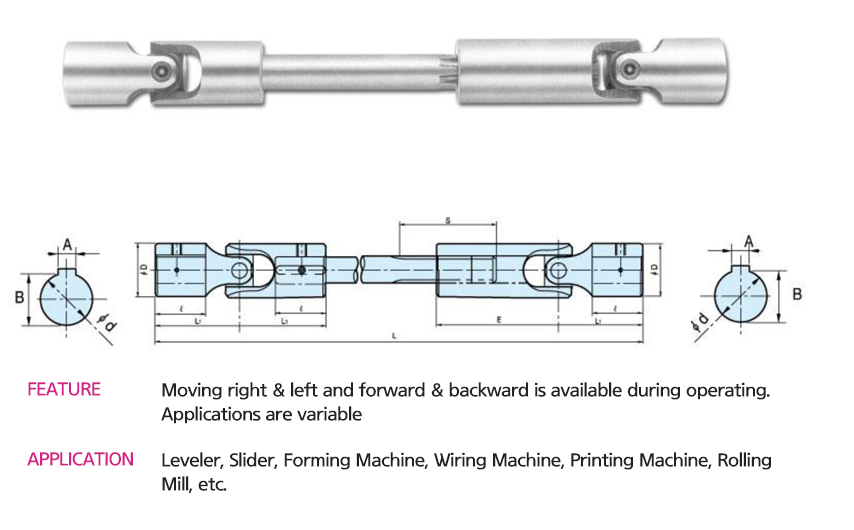

TK-LS Type STANDARD SPLINE TYPE
-
-
TK-LS Type SIZE Allowable TORQUE Overall Length L SLIDER
LengthInner Dia.
Φ dH7Out Dia.
Φ DL1 Length of Shaft Inserted
ℓCylindrical Yoke Length
ESize of Key
AXB(JS9)SPLINE
SSpline Size
Outer Dia. X Inner Dia.X W X Size
(MX Each pressure X Size)N-m kgf-m min max TK-LS-10 29.4 3.0 167 345 +30 10 20 34 24 65 3X11.8 65 M1.0XPA20˚XNT8 TK-LS-12 44.1 4.5 206 385 +35 12 24 42 29 80 4X13.8 75 14X11X3X6 TK-LS-14 69 7 231 440 +40 14 28 47 32 90 5X16.3 80 16X13X3.5X6 TK-LS-16 98 10 256 480 +40 16 32 52 35 100 5X18.3 90 20X16X4X6 TK-LS-18 130 13 290 560 +40 18 36 60 39 110 6X20.8 100 20X16X4X6 TK-LS-20 180 18 301 575 +50 20 40 62 40 115 6X22.8 100 22X18X5X6 TK-LS-22 235 24 315 615 +50 22 44 65 42 120 6X24.8 105 25X21X5X6 TK-LS-25 390 40 335 675 +50 25 50 70 43 125 8X28.3 115 28X23X6X6 TK-LS-30 490 50 422 780 +60 30 60 89 54 155 8X33.3 130 34X28X7X6 TK-LS-35 590 60 475 970 +65 35 70 100 58 175 10X38.3 150 38X32X6X8 TK-LS-40 835 85 532 1,105 +75 40 80 114 67 190 12X43.3 160 M2.5XPA20˚XNT16 TK-LS-45 1,370 140 575 1,225 +75 45 90 125 74 200 14X48.8 170 M2.5XPA20˚XNT16 TK-LS-50 1,960 200 615 1,295 +90 50 100 135 80 210 14X53.8 170 M3.0XPA20˚XNT16 TK-LS-60 4,900 500 680 1,415 +90 60 120 150 85 230 18X64.4 185 M4.0XPA20˚XNT16 TK-LS-70 5,880 600 730 1,745 +110 70 135 160 92 250 20X74.9 200 M4.0XPA20˚XNT16 TK-LS-80 9,320 950 820 1,935 +130 80 160 180 110 280 22X85.4 220 M5.0XPA20˚XNT16 TK-LS-100 12,750 1,300 1,060 2,335 +130 100 175 250 135 310 28X 240 M5.0XPA20˚XNT16 ※ Custom made for different sizes and materials is available. Above is for standard only, and can meet variable requirements on design of joint. For safety reason, please do not misuse and disassemble, but contact us in case of such needs. Wider angle than allowable shaft angle can be used, but it may affect efficiency and life. For improvement, sizes on above may be changed without notice.
-
