UNIVERSAL JOINT
-
-
UNIVERSAL JOINT
Based on the know-how and technology challenges towards new dreams. -

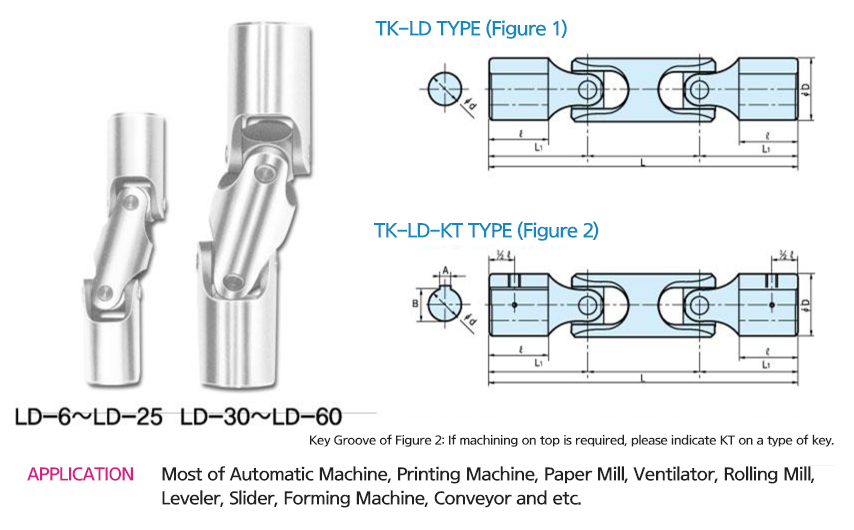

TK-LD Type STANDARD TYPE
-
-
TK-LD Type SIZE Allowable TORQUE Allowable Shaft Angle
( ˚ )Inner Dia.
Φ dH7Out Dia.
Φ DOverall Length
LL1 심간
CLength of Shaft Inserted
ℓSize of Key
AXB(JS9)TAP Number Weight
(kg)N.m kgf-m TK-LD-6 7.8 0.8 60 6 12 75 25 25 18.5 - - 0.045 TK-LD-8 14.7 1.5 60 8 16 86 28 30 19.0 - - 0.090 TK-LD-10 29.4 3.0 60 10 20 101 34 33 24.0 3X11.8 M5 0.160 TK-LD-12 44.1 4.5 60 12 24 125 42 41 29.0 4X13.8 M5 0.300 TK-LD-14 69 7 60 14 28 143 47 49 32.0 5X16.3 M6 0.500 TK-LD-16 98 10 60 16 32 158 52 54 35.0 5X18.3 M6 0.650 TK-LD-18 130 13 60 18 36 180 60 60 39.0 6X20.8 M6 0.950 TK-LD-20 180 18 60 20 40 188 62 64 40.0 6X22.8 M6 1.200 TK-LD-22 235 24 60 22 44 200 65 70 42.0 6X24.8 M6 1.500 TK-LD-25 390 40 60 25 50 220 70 80 43.0 8X28.3 M8 2.200 TK-LD-30 490 50 60 30 60 275 89 97 54.0 8X33.3 M8 4.000 TK-LD-35 590 60 60 35 70 310 100 110 58.0 10X M8 6.050 TK-LD-40 835 85 60 40 80 350 114 1223 67.0 38.3 M10 9.500 TK-LD-45 1,370 140 60 45 90 390 125 140 74.0 12X - 12.000 TK-LD-50 1,960 200 60 50 100 426 135 156 80.0 43.3 - 17.600 TK-LD-60 4,900 500 60 60 120 485 150 185 85.0 - - 30.000 ※ Custom made for different sizes and materials is available. Above is for standard only, and can meet variable requirements on design of joint. For safety reason, please do not misuse and disassemble, but contact us in case of such needs. Wider angle than allowable shaft angle can be used, but it may affect efficiency and life. For improvement, sizes on above may be changed without notice.
-
