UNIVERSAL JOINT
-
-
UNIVERSAL JOINT
Based on the know-how and technology challenges towards new dreams. -
TKF Type Light Duty & Medium Duty Type (Max TORQUE 350kg F•m ~ 1,175kg F•m)
-
-
TKF Type Light Duty & Medium Duty Type SIZE TAE KWANG TKF-150 TKF-160 TKF-180 TKF-200 TKF-225 MAX TORQUE Mb kgf-m 350 350 520 520 900 Mz kgf-m 480 480 670 670 1,170 ANGLE ß˚ 20˚ 20˚ 22˚ 22˚ 22˚ Dimensional Sign

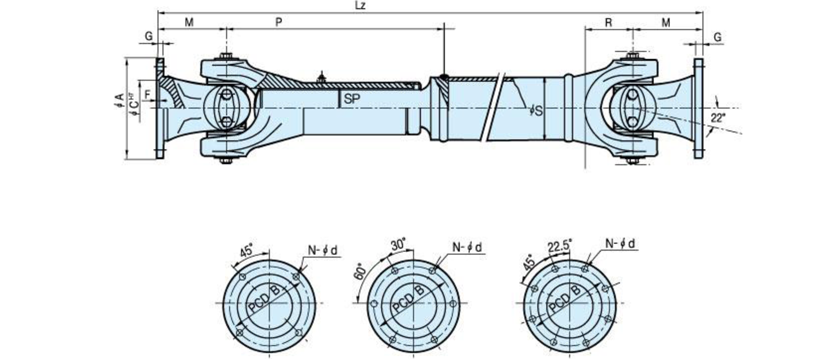

Unit mmΦA 150 160 180 200 225 PCD B 130 140 155.5 175 196 ΦCH7 90 100 110 125 140 F 3 4 3 5 5 G 10 10 12 14 15 M 80 80 95 100 108 P 380 380 380 400 450 R 75 75 80 102 115 SP 50.8 50.8 63.5 63.5 75 ΦS 89.1 89.1 101.6 101.6 114.3 ΦK 174 174 194 194 205 N 8 8 8 8 8 Φd 12.2 12.2 14.2 14.2 16.2 JOINT Min Length LZ(min) 580 600 600 660 730 SPLINE STROKE ℓ1 40 40 45 45 50 ℓ2 20 26 33 33 40 BOLT MXℓ M12X40 M12X40 M14X45 M14X45 M16X50 ※ß˚:Max Angle of Shaft Lz:Minimized Length ℓ1,ℓ2:Splined slip G:Weight of shaft G:Weight of Shaft GR:Weight per tube 100mm od:Bolt Size
A, B of Key Size to be determined
-
